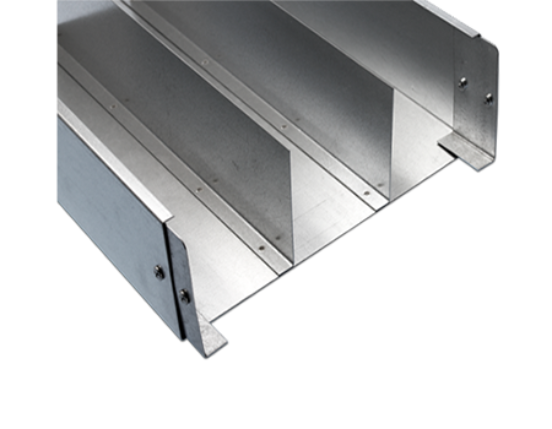

multi compartment cable trunking
AD-GT
- From 1st August 2022 all trunking will be supplied with improved turnbuckle fixings
- All sizes and dimensions displayed in mm
- Variations available
| size | 50 x 25 | 50 x 50 | 75 x 50 | 75 x 75 | 100 x 50 | 100 x 75 | 100 x 100 | 150 x 50 |
|---|---|---|---|---|---|---|---|---|
| 2 comp | AD-GT21/2 | AD-GT22/2 | AD-GT32/2 | AD-GT33/2 | AD-GT42/2 | AD-GT43/2 | AD-GT44/2 | AD-GT62/2 |
| 3 comp | X | X | AD-GT32/3 | AD-GT33/3 | AD-GT42/3 | AD-GT43/3 | AD-GT44/3 | AD-GT62/3 |
| 4 comp | X | X | X | X | X | X | X | AD-GT62/4 |
| size | 150 X 75 | 150 X 100 | 150 X 150 | 200 X 50 | 200 X 100 | 225 X 50 | 225 X 75 | 225 X 100 |
| 2 comp | AD-GT63/2 | AD-GT64/2 | AD-GT66/2 | AD-GT82/2 | AD-GT84/2 | AD-GT92/2 | AD-GT93/2 | AD-GT94/2 |
| 3 comp | AD-GT63/3 | AD-GT64/3 | AD-GT66/3 | AD-GT82/3 | AD-GT84/3 | AD-GT92/3 | AD-GT93/3 | AD-GT94/3 |
| 4 comp | AD-GT63/4 | AD-GT64/4 | AD-GT66/4 | AD-GT82/4 | AD-GT84/4 | AD-GT94/4 | AD-GT93/4 | AD-GT94/4 |
| size | 225 X 150 | 225 X 225 | 300 X 50 | 300 X 75 | 300 X 100 | 300 X 150 | 300 X 225 | 300 X 300 |
| 2 comp | AD-GT96/2 | AD-GT99/2 | AD-GT122/2 | AD-GT123/2 | AD-GT124/2 | AD-GT126/2 | AD-GT129/2 | AD-GT1212/2 |
| 3 comp | AD-GT96/3 | AD-GT99/3 | AD-GT122/3 | AD-GT123/3 | AD-GT124/3 | AD-GT126/3 | AD-GT129/3 | AD-GT1212/3 |
| 4 comp | AD-GT96/4 | AD-GT99/4 | AD-GT122/4 | AD-GT123/4 | AD-GT124/4 | AD-GT126/4 | AD-GT129/4 | AD-GT1212/4 |
